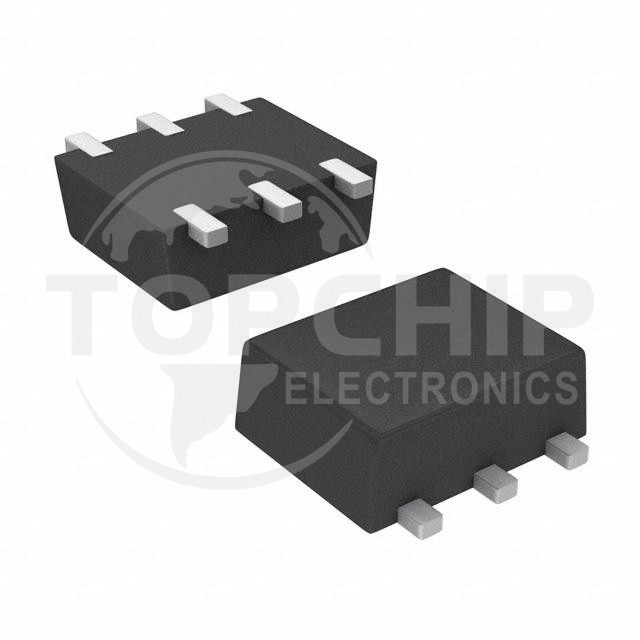

SI1070X-T1-GE3 Specifications

• Series:TrenchFET®
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:1.2A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):2.5V, 4.5V
• Rds On (Max) @ Id, Vgs:99mOhm @ 1.2A, 4.5V
• Vgs(th) (Max) @ Id:1.55V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:8.3 nC @ 5 V
• Vgs (Max):±12V
• Input Capacitance (Ciss) (Max) @ Vds:385 pF @ 15 V
• FET Feature:-
• Power Dissipation (Max):236mW (Ta)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:SC-89-6
• Package / Case:SOT-563, SOT-666
