SPD06N80C3ATMA1 Specifications

• Series:CoolMOS™
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):800 V
• Current - Continuous Drain (Id) @ 25°C:6A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:900mOhm @ 3.8A, 10V
• Vgs(th) (Max) @ Id:3.9V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:41 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:785 pF @ 100 V
• FET Feature:-
• Power Dissipation (Max):83W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:PG-TO252-3

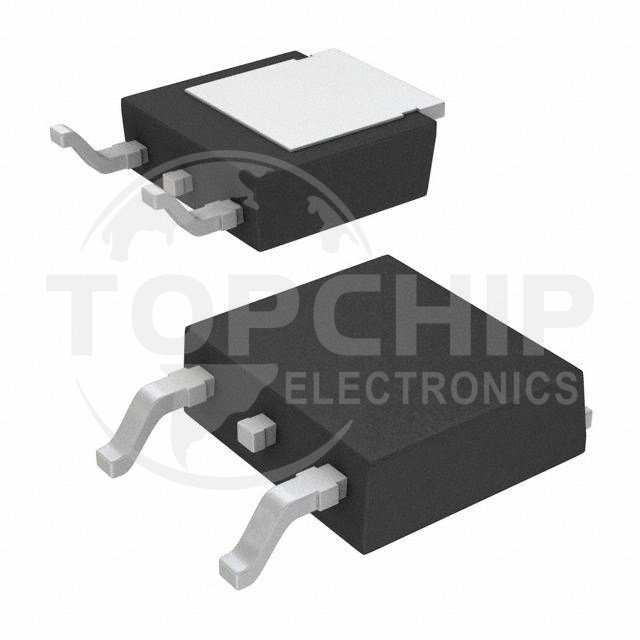

• Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
