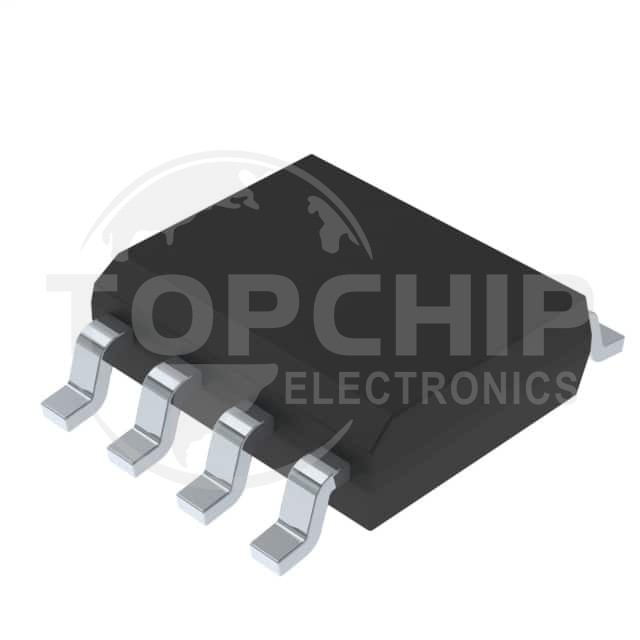

STS10N3LH5 Specifications

• Series:STripFET™ V
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:10A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:21mOhm @ 5A, 10V
• Vgs(th) (Max) @ Id:1V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:4.6 nC @ 5 V
• Vgs (Max):±22V
• Input Capacitance (Ciss) (Max) @ Vds:475 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):2.5W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:8-SO
• Package / Case:8-SOIC (0.154", 3.90mm Width)
