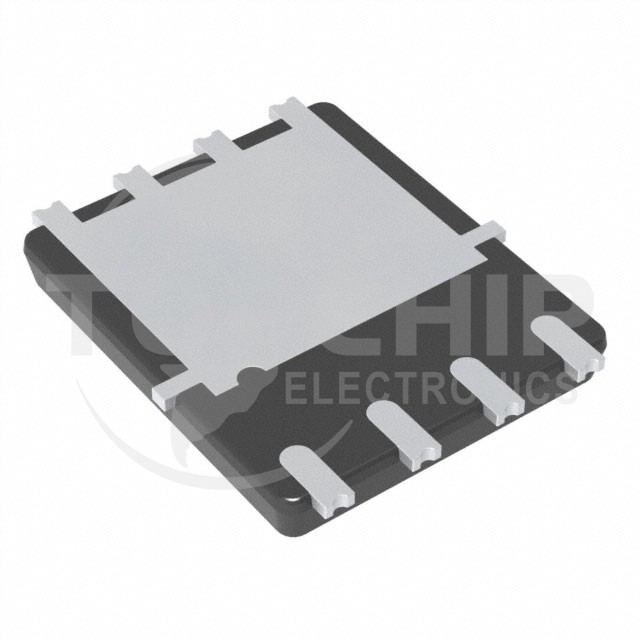

STLD125N4F6AG Specifications

• Series:STripFET™ F6
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):40 V
• Current - Continuous Drain (Id) @ 25°C:120A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):6.5V, 10V
• Rds On (Max) @ Id, Vgs:3mOhm @ 75A, 10V
• Vgs(th) (Max) @ Id:4V @ 1mA
• Gate Charge (Qg) (Max) @ Vgs:91 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:5600 pF @ 10 V
• FET Feature:-
• Power Dissipation (Max):130W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:PowerFlat™ (5x6) Dual Side
• Package / Case:8-PowerWDFN
