IPL60R075CFD7AUMA1 Specifications

• Series:CoolMOS™ CFD7
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):650 V
• Current - Continuous Drain (Id) @ 25°C:33A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:75mOhm @ 15.1A, 10V
• Vgs(th) (Max) @ Id:4.5V @ 760µA
• Gate Charge (Qg) (Max) @ Vgs:67 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:2721 pF @ 400 V
• FET Feature:-
• Power Dissipation (Max):189W (Tc)
• Operating Temperature:-40°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

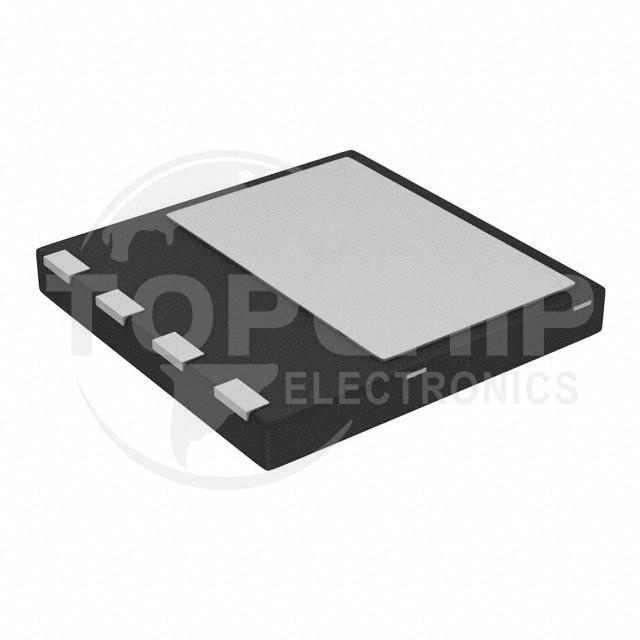

• Supplier Device Package:PG-VSON-4
• Package / Case:4-PowerTSFN
