SCTH35N65G2V-7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:SiCFET (Silicon Carbide)
• Drain to Source Voltage (Vdss):650 V
• Current - Continuous Drain (Id) @ 25°C:45A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):18V, 20V
• Rds On (Max) @ Id, Vgs:67mOhm @ 20A, 20V
• Vgs(th) (Max) @ Id:3.2V @ 1mA
• Gate Charge (Qg) (Max) @ Vgs:73 nC @ 20 V
• Vgs (Max):+22V, -10V
• Input Capacitance (Ciss) (Max) @ Vds:1370 pF @ 400 V
• FET Feature:-
• Power Dissipation (Max):208W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount

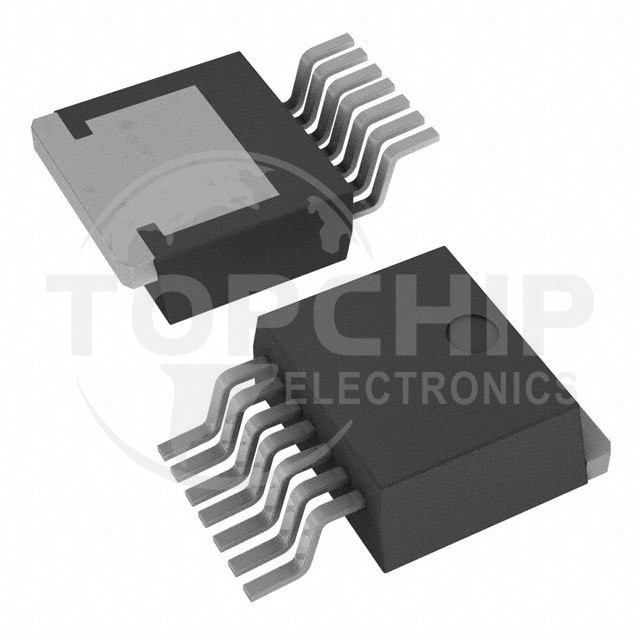

• Supplier Device Package:H2PAK-7
• Package / Case:TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
