DMP6250SE-13 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:P-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):60 V
• Current - Continuous Drain (Id) @ 25°C:2.1A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:250mOhm @ 1A, 10V
• Vgs(th) (Max) @ Id:3V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:9.7 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:551 pF @ 30 V
• FET Feature:-
• Power Dissipation (Max):1.8W (Ta), 14W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

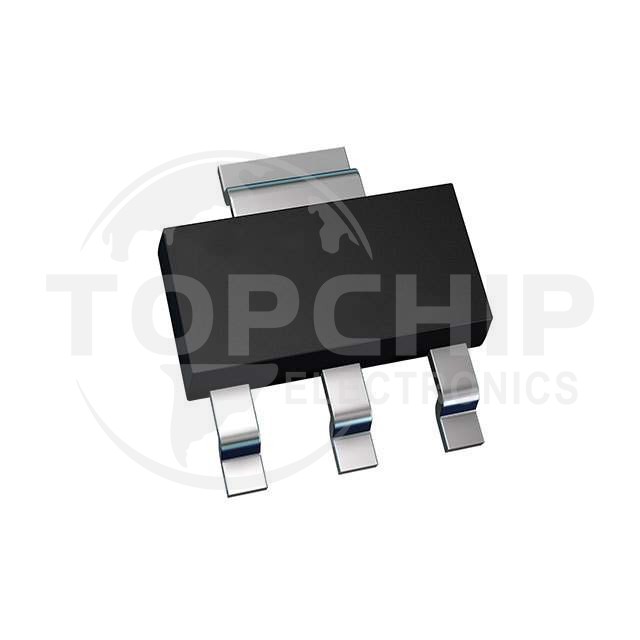

• Supplier Device Package:SOT-223
• Package / Case:TO-261-4, TO-261AA
