IPD053N06NATMA1 Specifications

• Series:OptiMOS™
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):60 V
• Current - Continuous Drain (Id) @ 25°C:18A (Ta), 45A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):6V, 10V
• Rds On (Max) @ Id, Vgs:5.3mOhm @ 45A, 10V
• Vgs(th) (Max) @ Id:2.8V @ 36µA
• Gate Charge (Qg) (Max) @ Vgs:27 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:2000 pF @ 30 V
• FET Feature:-
• Power Dissipation (Max):3W (Ta), 83W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:PG-TO252-3

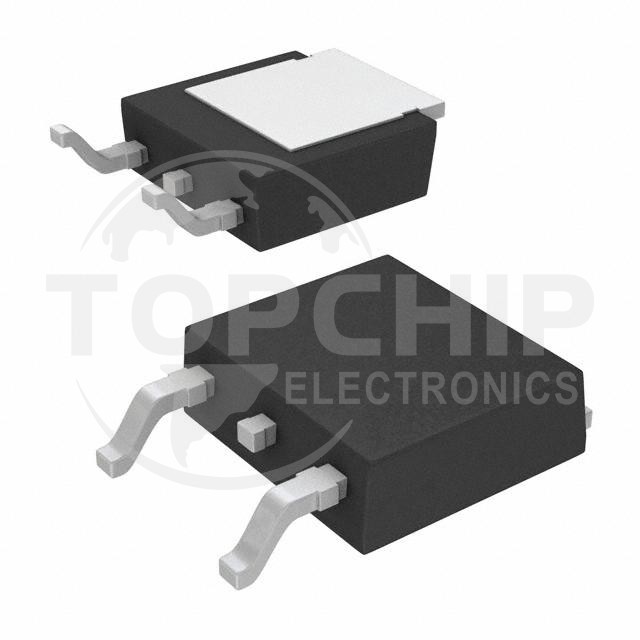

• Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
