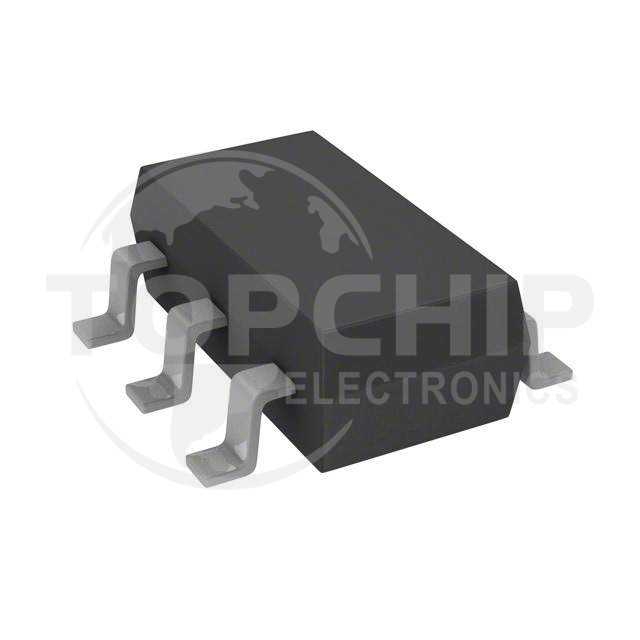

DMP3050LVT-7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:P-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:4.5A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:50mOhm @ 4.5A, 10V
• Vgs(th) (Max) @ Id:2V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:10.5 nC @ 10 V
• Vgs (Max):±25V
• Input Capacitance (Ciss) (Max) @ Vds:620 pF @ 15 V
• FET Feature:-
• Power Dissipation (Max):1.8W (Ta)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:TSOT-26
• Package / Case:SOT-23-6 Thin, TSOT-23-6
