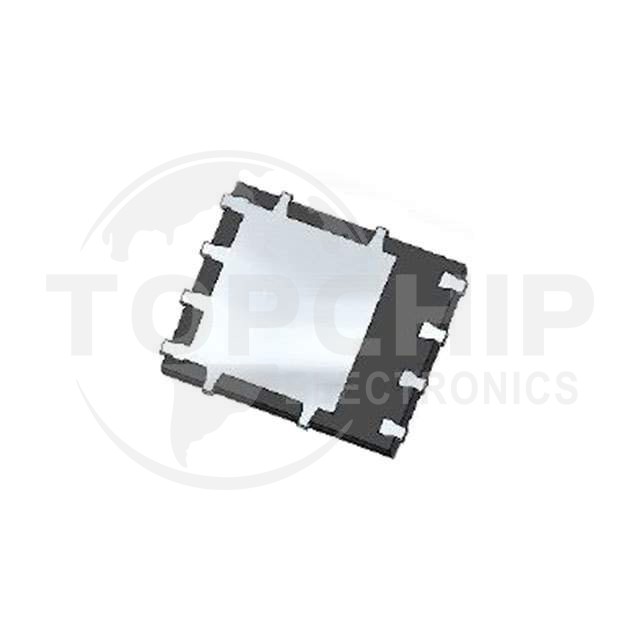

DMTH3002LPS-13 Specifications

• Series:Automotive, AEC-Q101
• Package:Tape & Reel (TR)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:100A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:1.6mOhm @ 25A, 10V
• Vgs(th) (Max) @ Id:2V @ 1mA
• Gate Charge (Qg) (Max) @ Vgs:77 nC @ 10 V
• Vgs (Max):±16V
• Input Capacitance (Ciss) (Max) @ Vds:5000 pF @ 15 V
• FET Feature:-
• Power Dissipation (Max):1.2W (Ta), 136W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:PowerDI5060-8
• Package / Case:8-PowerTDFN
