FDMS86255ET150 Specifications

• Series:PowerTrench®
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):150 V
• Current - Continuous Drain (Id) @ 25°C:10A (Ta), 63A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):6V, 10V
• Rds On (Max) @ Id, Vgs:12.4mOhm @ 10A, 10V
• Vgs(th) (Max) @ Id:4V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:63 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:4480 pF @ 75 V
• FET Feature:-
• Power Dissipation (Max):3.3W (Ta), 136W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount

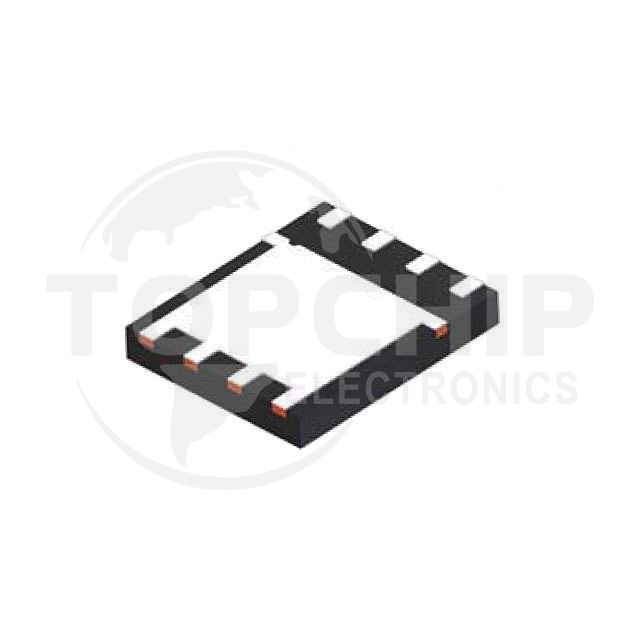

• Supplier Device Package:Power56
• Package / Case:8-PowerTDFN
