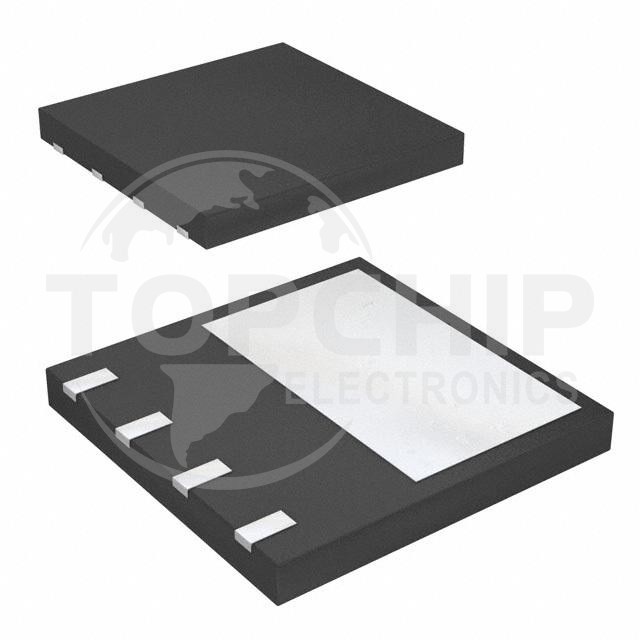

STL19N60DM2 Specifications

• Series:MDmesh™ DM2
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):600 V
• Current - Continuous Drain (Id) @ 25°C:11A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:320mOhm @ 5.5A, 10V
• Vgs(th) (Max) @ Id:5V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:21 nC @ 10 V
• Vgs (Max):±25V
• Input Capacitance (Ciss) (Max) @ Vds:-
• FET Feature:-
• Power Dissipation (Max):90W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:PowerFlat™ (8x8) HV
• Package / Case:8-PowerVDFN
