DMN2026UVT-13 Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):20 V
• Current - Continuous Drain (Id) @ 25°C:6.2A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):2.5V, 4.5V
• Rds On (Max) @ Id, Vgs:24mOhm @ 6.2A, 4.5V
• Vgs(th) (Max) @ Id:1.5V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:18.4 nC @ 8 V
• Vgs (Max):±10V
• Input Capacitance (Ciss) (Max) @ Vds:887 pF @ 10 V
• FET Feature:-
• Power Dissipation (Max):1.15W (Ta)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:TSOT-26

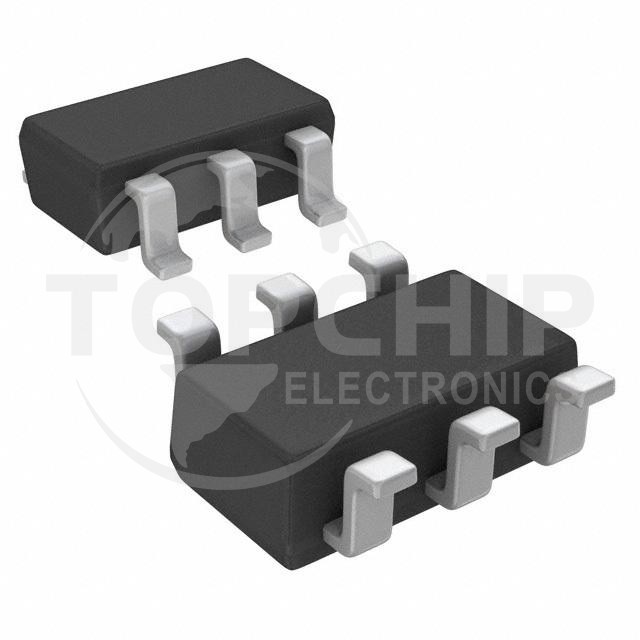

• Package / Case:SOT-23-6 Thin, TSOT-23-6
