FDP2D9N12C Specifications

• Series:PowerTrench®
• Package:Tube
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):120 V
• Current - Continuous Drain (Id) @ 25°C:18A (Ta), 210A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):6V, 10V
• Rds On (Max) @ Id, Vgs:2.9mOhm @ 100A, 10V
• Vgs(th) (Max) @ Id:4V @ 686µA
• Gate Charge (Qg) (Max) @ Vgs:109 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:8894 pF @ 60 V
• FET Feature:-
• Power Dissipation (Max):2.4W (Ta), 333W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Through Hole

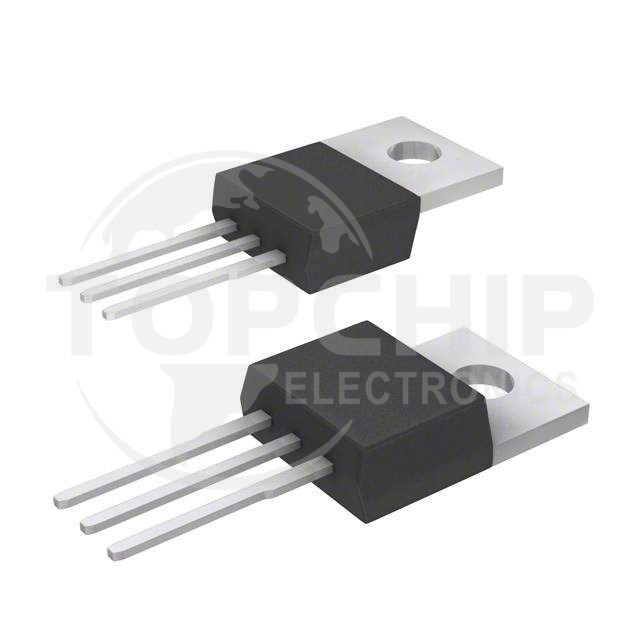

• Supplier Device Package:TO-220-3
• Package / Case:TO-220-3
