FQPF15P12

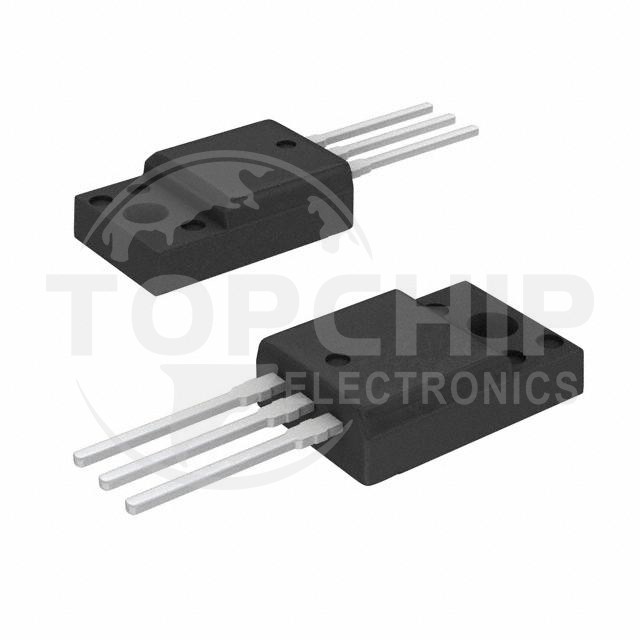

Image is for reference, please contact us to get the real picture

Manufacturer Part
FQPF15P12
Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
MOSFET P-CH 120V 15A TO220F
Category
Discrete Semiconductor Products
Family
Transistors - FETs, MOSFETs - Single
Series
-
In Stock
518
Datasheets
-

FQPF15P12 Specifications

  • Series:QFET®
  • Package:Tube
  • Part Status:Active
  • FET Type:P-Channel
  • Technology:MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss):120 V
  • Current - Continuous Drain (Id) @ 25°C:15A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On):10V
  • Rds On (Max) @ Id, Vgs:200mOhm @ 7.5A, 10V
  • Vgs(th) (Max) @ Id:4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs:38 nC @ 10 V
  • Vgs (Max):±30V
  • Input Capacitance (Ciss) (Max) @ Vds:1100 pF @ 25 V
  • FET Feature:-
  • Power Dissipation (Max):41W (Tc)
  • Operating Temperature:-55°C ~ 175°C (TJ)
  • Mounting Type:Through Hole
  • Supplier Device Package:TO-220F
  • Package / Case:TO-220-3 Full Pack
