PSMNR90-40SSHJ Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):40 V
• Current - Continuous Drain (Id) @ 25°C:375A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:0.9mOhm @ 25A, 10V
• Vgs(th) (Max) @ Id:3.6V @ 1mA
• Gate Charge (Qg) (Max) @ Vgs:166 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:12888 pF @ 25 V
• FET Feature:Schottky Diode (Body)
• Power Dissipation (Max):375W (Ta)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount

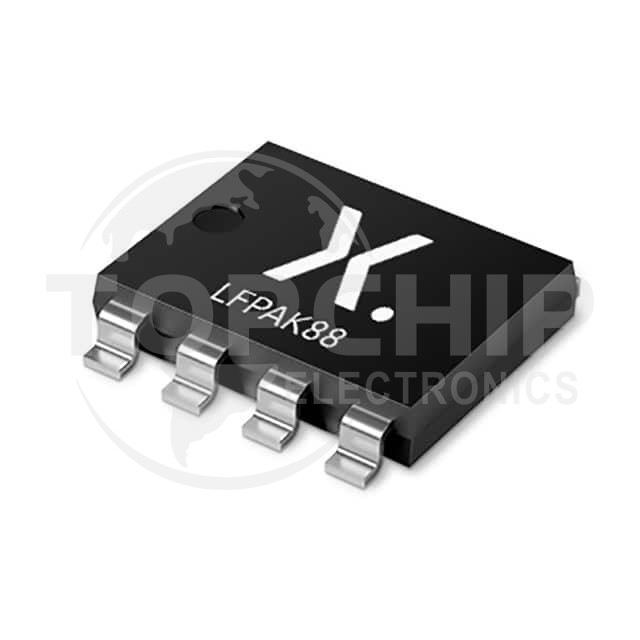

• Supplier Device Package:LFPAK88 (SOT1235)
• Package / Case:SOT-1235
