STU3LN80K5 Specifications

• Series:MDmesh™ K5
• Package:Tube
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):800 V
• Current - Continuous Drain (Id) @ 25°C:2A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:3.25Ohm @ 1A, 10V
• Vgs(th) (Max) @ Id:5V @ 100µA
• Gate Charge (Qg) (Max) @ Vgs:2.63 nC @ 10 V
• Vgs (Max):±30V
• Input Capacitance (Ciss) (Max) @ Vds:102 pF @ 100 V
• FET Feature:-
• Power Dissipation (Max):45W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Through Hole

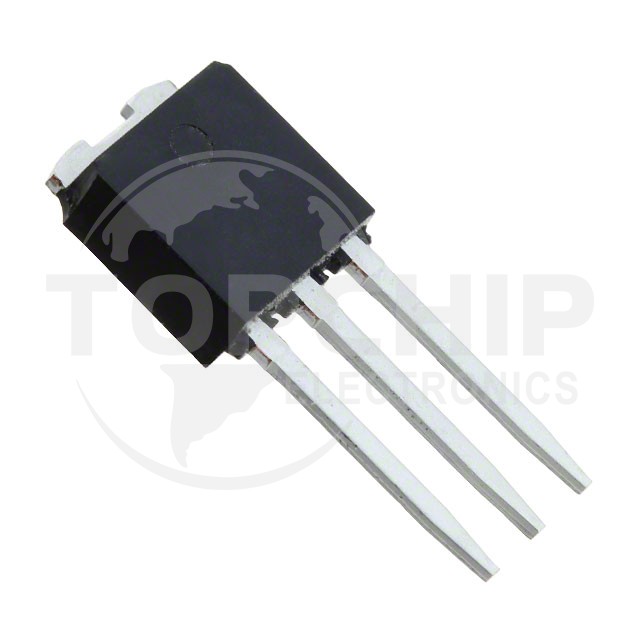

• Supplier Device Package:IPAK (TO-251)
• Package / Case:TO-251-3 Short Leads, IPak, TO-251AA
