STF30N10F7 Specifications

• Series:DeepGATE™, STripFET™ VII
• Package:Tube
• Part Status:Not For New Designs
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):100 V
• Current - Continuous Drain (Id) @ 25°C:24A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:24mOhm @ 16A, 10V
• Vgs(th) (Max) @ Id:4.5V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:19 nC @ 10 V
• Vgs (Max):20V
• Input Capacitance (Ciss) (Max) @ Vds:1270 pF @ 50 V
• FET Feature:-
• Power Dissipation (Max):25W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Through Hole

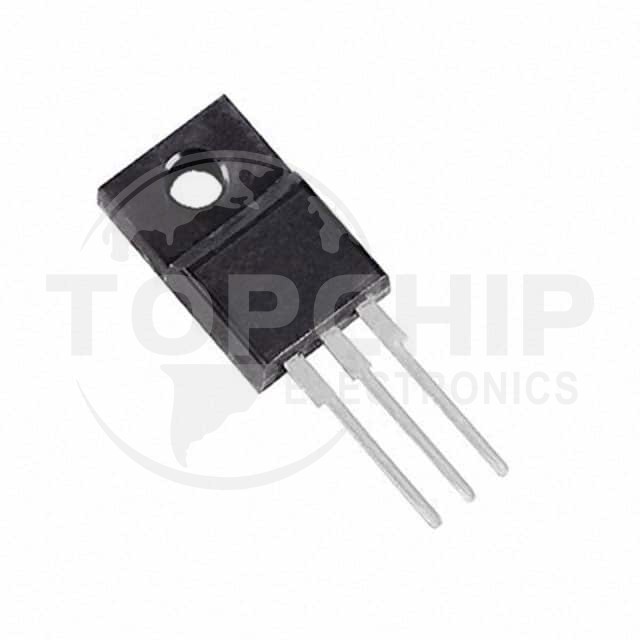

• Supplier Device Package:TO-220FP
• Package / Case:TO-220-3 Full Pack
