STB8N90K5 Specifications

• Series:MDmesh™ K5
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):900 V
• Current - Continuous Drain (Id) @ 25°C:8A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:800mOhm @ 1.17A, 10V
• Vgs(th) (Max) @ Id:5V @ 100µA
• Gate Charge (Qg) (Max) @ Vgs:-
• Vgs (Max):±30V
• Input Capacitance (Ciss) (Max) @ Vds:-
• FET Feature:-
• Power Dissipation (Max):130W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

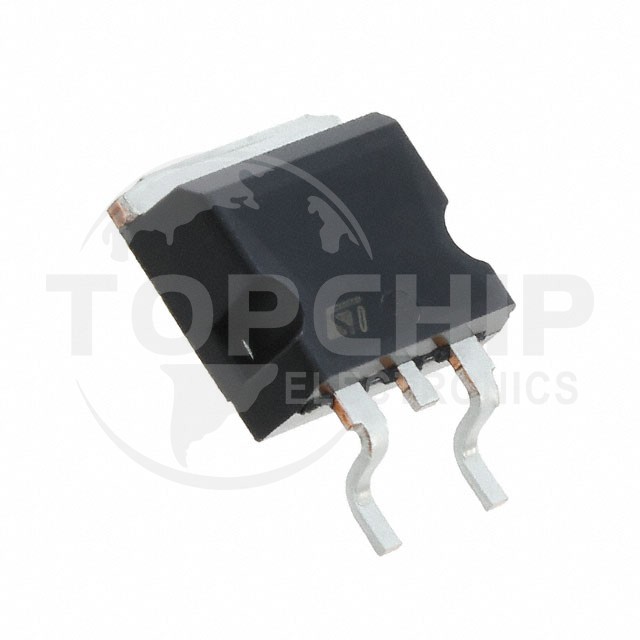

• Supplier Device Package:D2PAK
• Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
