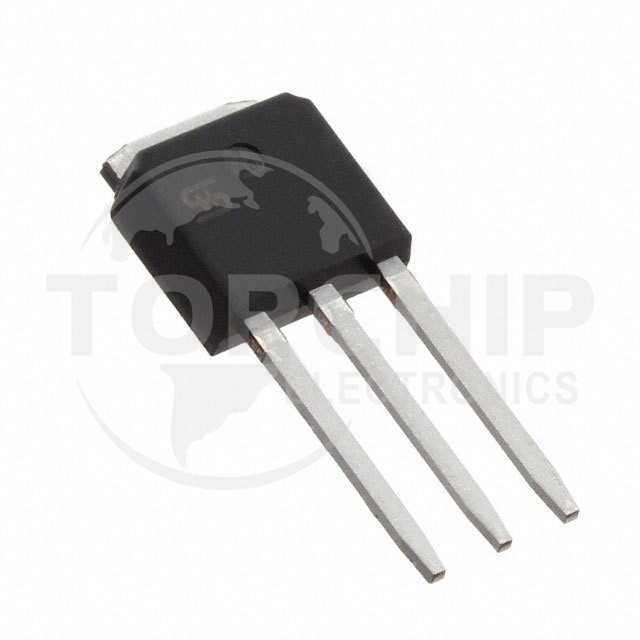

TSM2N100CH C5G Specifications

• Series:-
• Package:Tube
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):1000 V
• Current - Continuous Drain (Id) @ 25°C:1.85A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:8.5Ohm @ 900mA, 10V
• Vgs(th) (Max) @ Id:5.5V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:17 nC @ 10 V
• Vgs (Max):±30V
• Input Capacitance (Ciss) (Max) @ Vds:625 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):77W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Through Hole
• Supplier Device Package:TO-251 (IPAK)
• Package / Case:TO-251-3 Short Leads, IPak, TO-251AA
