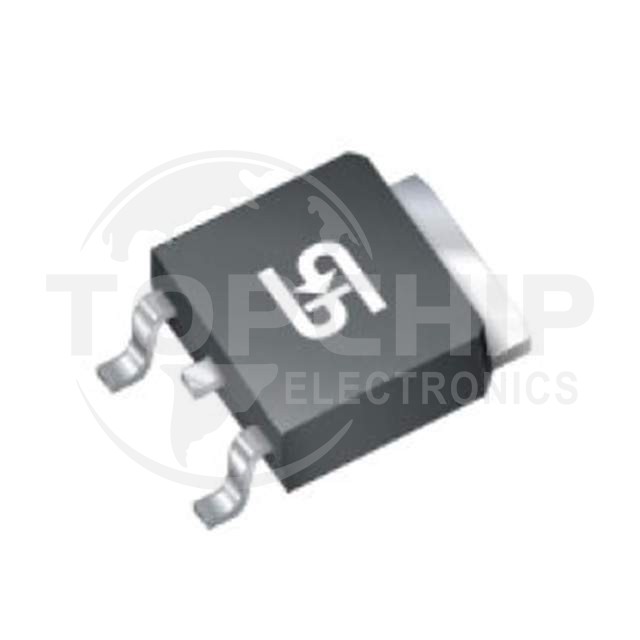

TSM480P06CP ROG Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:P-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):60 V
• Current - Continuous Drain (Id) @ 25°C:20A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:48mOhm @ 8A, 10V
• Vgs(th) (Max) @ Id:2.2V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:22.4 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:1250 pF @ 30 V
• FET Feature:-
• Power Dissipation (Max):66W (Tc)
• Operating Temperature:-50°C ~ 150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:TO-252, (D-Pak)
• Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
