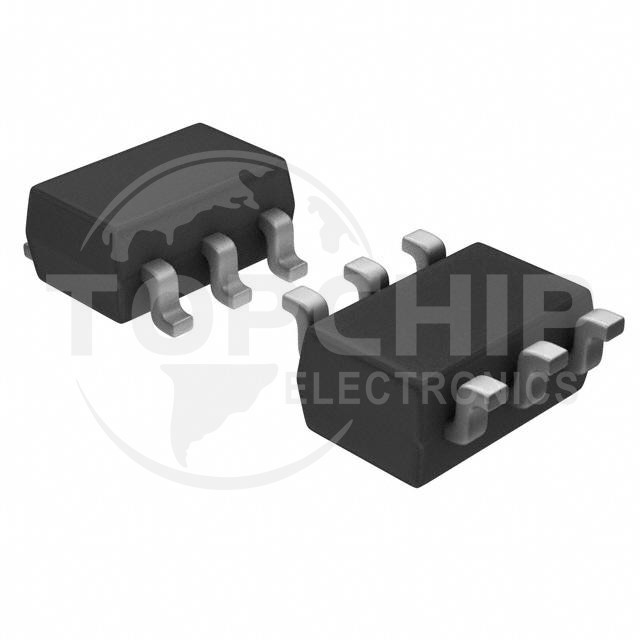

STT5N2VH5 Specifications

• Series:STripFET™ V
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):20 V
• Current - Continuous Drain (Id) @ 25°C:5A (Tj)
• Drive Voltage (Max Rds On, Min Rds On):2.5V, 4.5V
• Rds On (Max) @ Id, Vgs:30mOhm @ 2A, 4.5V
• Vgs(th) (Max) @ Id:700mV @ 250µA (Min)
• Gate Charge (Qg) (Max) @ Vgs:4.6 nC @ 4.5 V
• Vgs (Max):±8V
• Input Capacitance (Ciss) (Max) @ Vds:367 pF @ 16 V
• FET Feature:-
• Power Dissipation (Max):1.6W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:SOT-23-6
• Package / Case:SOT-23-6
