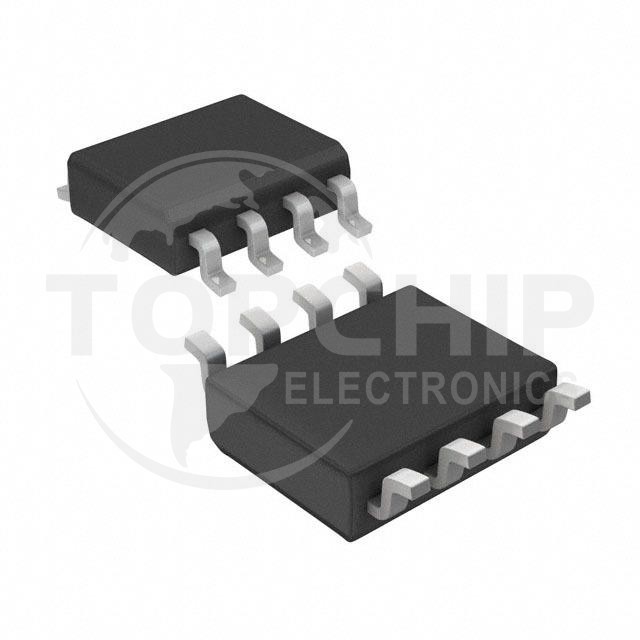

STS7P4LLF6 Specifications

• Series:STripFET™ F6
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:P-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):40 V
• Current - Continuous Drain (Id) @ 25°C:7A (Tj)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:20.5mOhm @ 3.5A, 10V
• Vgs(th) (Max) @ Id:1V @ 250µA (Min)
• Gate Charge (Qg) (Max) @ Vgs:22 nC @ 4.5 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:2850 pF @ 25 V
• FET Feature:-
• Power Dissipation (Max):2.7W (Ta)
• Operating Temperature:150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:8-SO
• Package / Case:8-SOIC (0.154", 3.90mm Width)
