CSD16409Q3 Specifications

• Series:NexFET™
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):25 V
• Current - Continuous Drain (Id) @ 25°C:15A (Ta), 60A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:8.2mOhm @ 17A, 10V
• Vgs(th) (Max) @ Id:2.3V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:5.6 nC @ 4.5 V
• Vgs (Max):+16V, -12V
• Input Capacitance (Ciss) (Max) @ Vds:800 pF @ 12.5 V
• FET Feature:-
• Power Dissipation (Max):2.6W (Ta)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:8-VSONP (5x6)

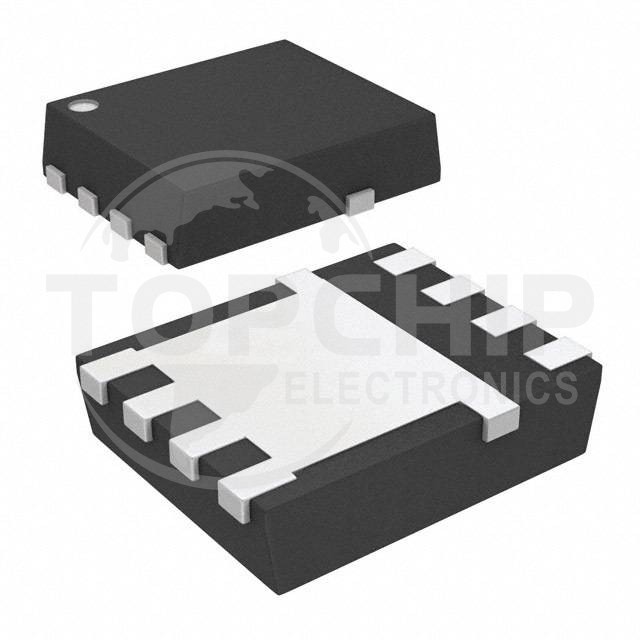

• Package / Case:8-PowerTDFN
