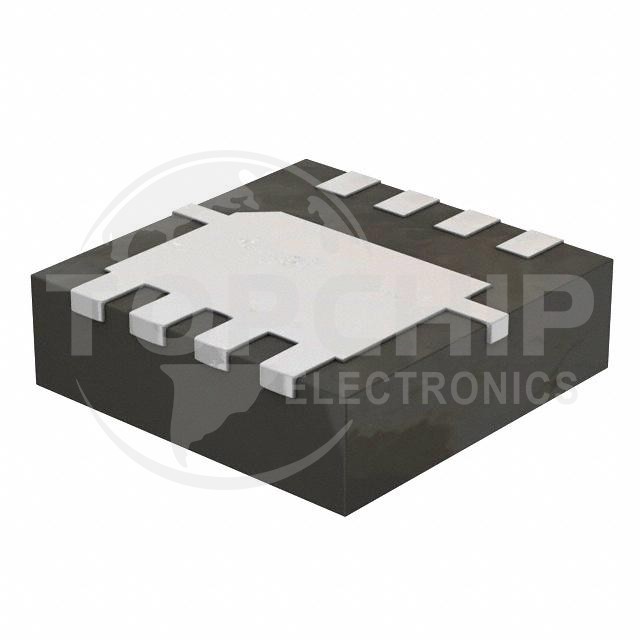

CSD17308Q3T Specifications

• Series:NexFET™
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:14A (Ta), 44A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):3V, 8V
• Rds On (Max) @ Id, Vgs:10.3mOhm @ 10A, 8V
• Vgs(th) (Max) @ Id:1.8V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:5.1 nC @ 4.5 V
• Vgs (Max):+10V, -8V
• Input Capacitance (Ciss) (Max) @ Vds:700 pF @ 15 V
• FET Feature:-
• Power Dissipation (Max):2.7W (Ta), 28W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:8-VSON-CLIP (3.3x3.3)
• Package / Case:8-PowerTDFN
