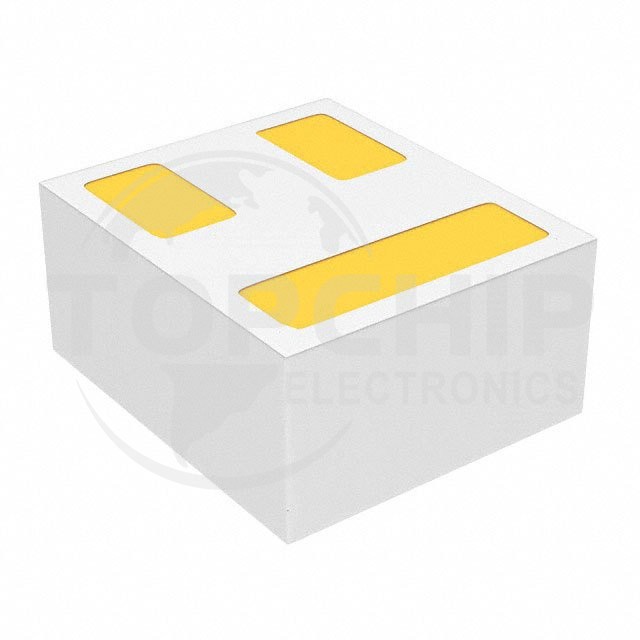

CSD25480F3T Specifications

• Series:FemtoFET™
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:P-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):20 V
• Current - Continuous Drain (Id) @ 25°C:1.7A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):1.8V, 8V
• Rds On (Max) @ Id, Vgs:132mOhm @ 400mA, 8V
• Vgs(th) (Max) @ Id:1.2V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:0.91 nC @ 10 V
• Vgs (Max):-12V
• Input Capacitance (Ciss) (Max) @ Vds:155 pF @ 10 V
• FET Feature:-
• Power Dissipation (Max):500mW (Ta)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:3-PICOSTAR
• Package / Case:3-SMD, No Lead
