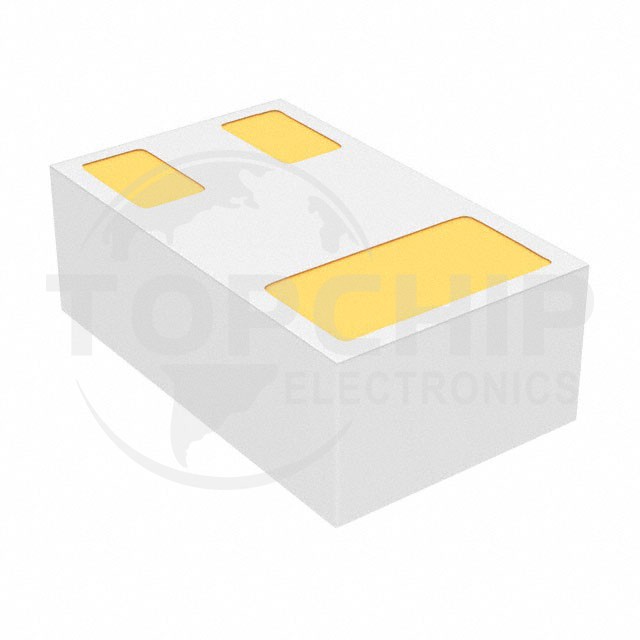

CSD17483F4 Specifications

• Series:NexFET™
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:1.5A (Ta)
• Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
• Rds On (Max) @ Id, Vgs:240mOhm @ 500mA, 8V
• Vgs(th) (Max) @ Id:1.1V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:1.3 nC @ 4.5 V
• Vgs (Max):12V
• Input Capacitance (Ciss) (Max) @ Vds:190 pF @ 15 V
• FET Feature:-
• Power Dissipation (Max):500mW (Ta)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:3-PICOSTAR
• Package / Case:3-XFDFN
