NGTB20N120IHRWG

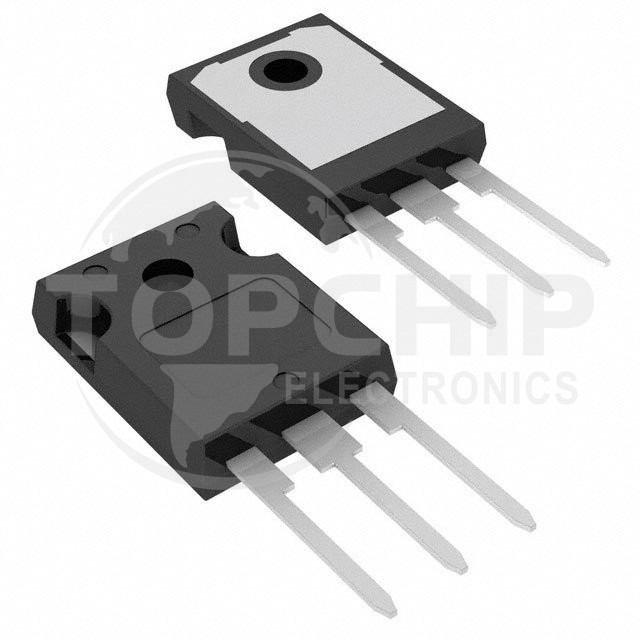

Image is for reference, please contact us to get the real picture

Manufacturer Part
NGTB20N120IHRWG
Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
IGBT TRENCH/FS 1200V 40A TO247
Category
Discrete Semiconductor Products
Family
Transistors - IGBTs - Single
Series
-
In Stock
890
Datasheets
-

NGTB20N120IHRWG Specifications

  • Series:-
  • Package:Tube
  • Part Status:Active
  • IGBT Type:Trench Field Stop
  • Voltage - Collector Emitter Breakdown (Max):1200 V
  • Current - Collector (Ic) (Max):40 A
  • Current - Collector Pulsed (Icm):120 A
  • Vce(on) (Max) @ Vge, Ic:2.45V @ 15V, 20A
  • Power - Max:384 W
  • Switching Energy:450µJ (off)
  • Input Type:Standard
  • Gate Charge:225 nC
  • Td (on/off) @ 25°C:-/235ns
  • Test Condition:600V, 20A, 10Ohm, 15V
  • Reverse Recovery Time (trr):-
  • Operating Temperature:-40°C ~ 175°C (TJ)
  • Mounting Type:Through Hole
  • Package / Case:TO-247-3
  • Supplier Device Package:TO-247
