SBR15U100CTL-13

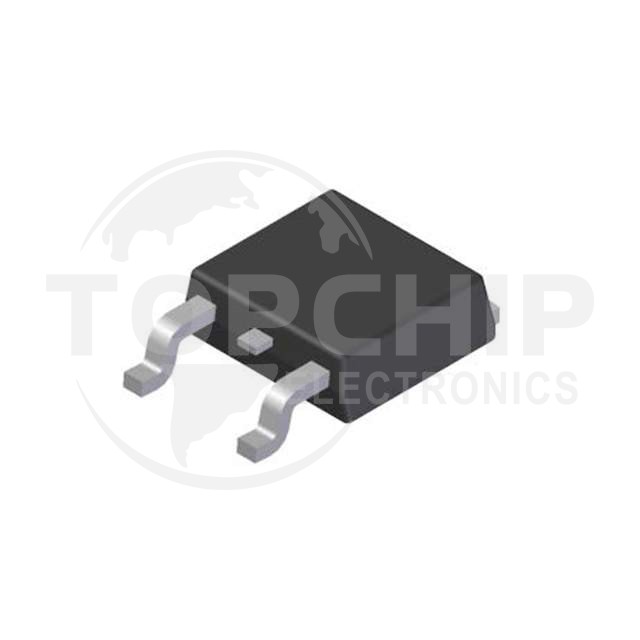

Image is for reference, please contact us to get the real picture

Manufacturer Part
SBR15U100CTL-13
Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
DIODE ARRAY SBR 100V 7.5A TO252
Category
Discrete Semiconductor Products
Family
Diodes - Rectifiers - Arrays
Series
-
In Stock
84
Datasheets
-

SBR15U100CTL-13 Specifications

  • Series:SBR®
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Diode Configuration:1 Pair Common Cathode
  • Diode Type:Super Barrier
  • Voltage - DC Reverse (Vr) (Max):100 V
  • Current - Average Rectified (Io) (per Diode):7.5A
  • Voltage - Forward (Vf) (Max) @ If:800 mV @ 7.5 A
  • Speed:Fast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr):-
  • Current - Reverse Leakage @ Vr:80 µA @ 100 V
  • Operating Temperature - Junction:-65°C ~ 175°C
  • Mounting Type:Surface Mount
  • Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
  • Supplier Device Package:TO-252-3
