BAV199DW-7-F

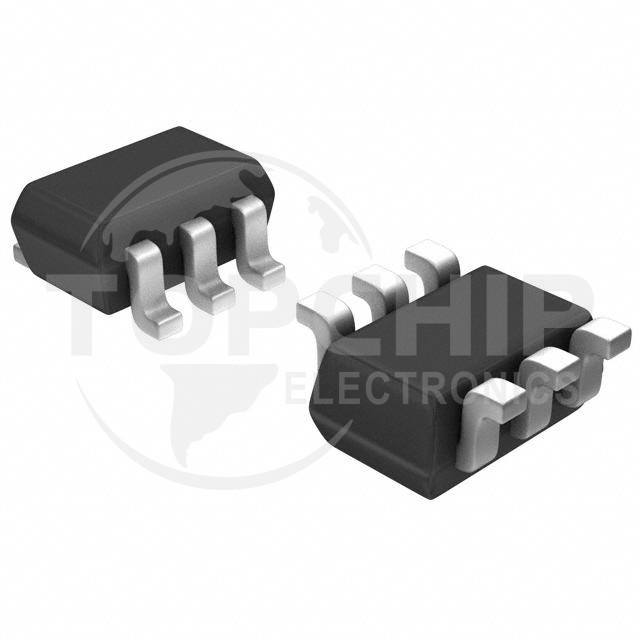

Image is for reference, please contact us to get the real picture

Manufacturer Part
BAV199DW-7-F
Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
DIODE ARRAY GP 85V 140MA SOT363
Category
Discrete Semiconductor Products
Family
Diodes - Rectifiers - Arrays
Series
-
In Stock
125433
Datasheets
-

BAV199DW-7-F Specifications

  • Series:-
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Diode Configuration:2 Pair Series Connection
  • Diode Type:Standard
  • Voltage - DC Reverse (Vr) (Max):85 V
  • Current - Average Rectified (Io) (per Diode):140mA (DC)
  • Voltage - Forward (Vf) (Max) @ If:1.1 V @ 50 mA
  • Speed:Small Signal =< 200mA (Io), Any Speed
  • Reverse Recovery Time (trr):3 µs
  • Current - Reverse Leakage @ Vr:5 nA @ 75 V
  • Operating Temperature - Junction:-65°C ~ 150°C
  • Mounting Type:Surface Mount
  • Package / Case:6-TSSOP, SC-88, SOT-363
  • Supplier Device Package:SOT-363
