SQJ500AEP-T1_BE3 Specifications

• Series:Automotive, AEC-Q101, TrenchFET®
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N and P-Channel
• FET Feature:Standard
• Drain to Source Voltage (Vdss):40V
• Current - Continuous Drain (Id) @ 25°C:30A (Tc)
• Rds On (Max) @ Id, Vgs:9.2mOhm @ 9.8A, 10V, 27mOhm @ 6A, 10V
• Vgs(th) (Max) @ Id:2.3V @ 250µA, 2.5V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:38.3nC @ 10V, 45nC @ 10V
• Input Capacitance (Ciss) (Max) @ Vds:1843pF @ 20V, 1628pF @ 20V
• Power - Max:48W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount

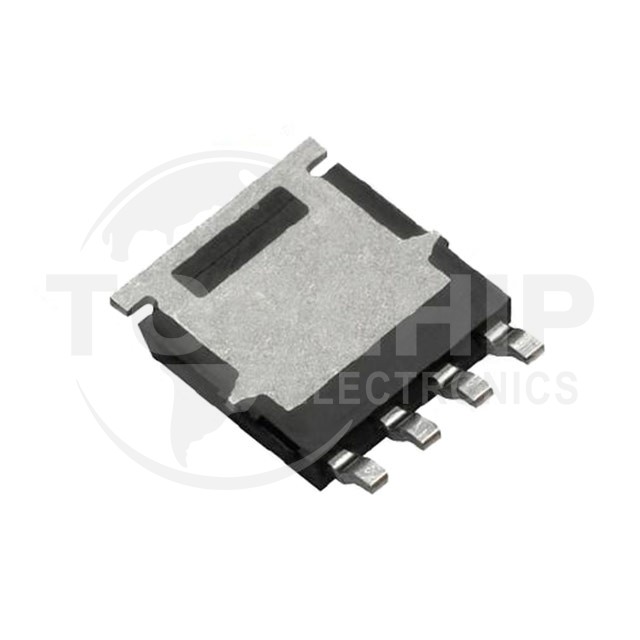

• Package / Case:PowerPAK® SO-8
• Supplier Device Package:PowerPAK® SO-8
