PCIE-164-02-F-D-TH

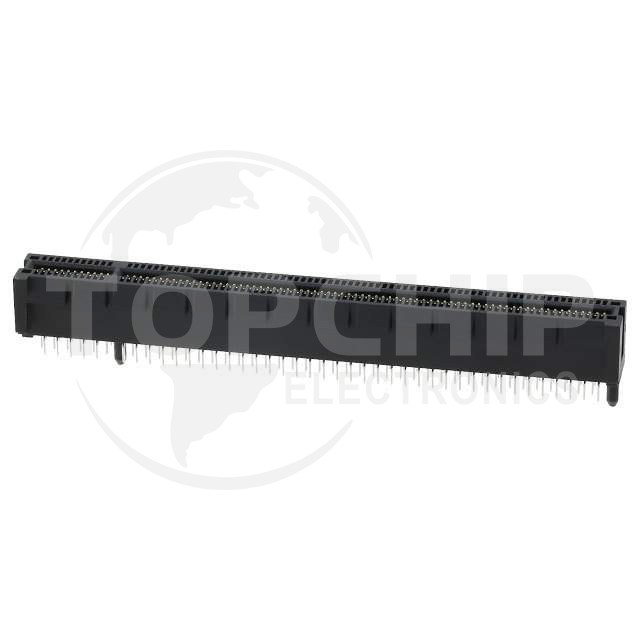

Image is for reference, please contact us to get the real picture

Manufacturer Part
PCIE-164-02-F-D-TH
Manufacturer
Samtec, Inc.
Description
CONN PCI EXP FMALE 164POS 0.039
Category
Connectors, Interconnects
Family
Card Edge Connectors - Edgeboard Connectors
Series
-
In Stock
87
Datasheets
-

PCIE-164-02-F-D-TH Specifications

  • Series:PCI Express® (PCIe)
  • Package:Tube
  • Part Status:Active
  • Card Type:PCI Express™
  • Gender:Female
  • Number of Positions/Bay/Row:-
  • Number of Positions:164
  • Card Thickness:0.062" (1.57mm)
  • Number of Rows:2
  • Pitch:0.039" (1.00mm)
  • Read Out:Dual
  • Features:Board Guide
  • Mounting Type:Through Hole
  • Termination:Solder, Staggered
  • Contact Material:Phosphor Bronze
  • Contact Finish:Gold
  • Contact Finish Thickness:3.00µin (0.076µm)
  • Contact Type:-
  • Color:Black
  • Flange Feature:-
  • Operating Temperature:-55°C ~ 125°C
