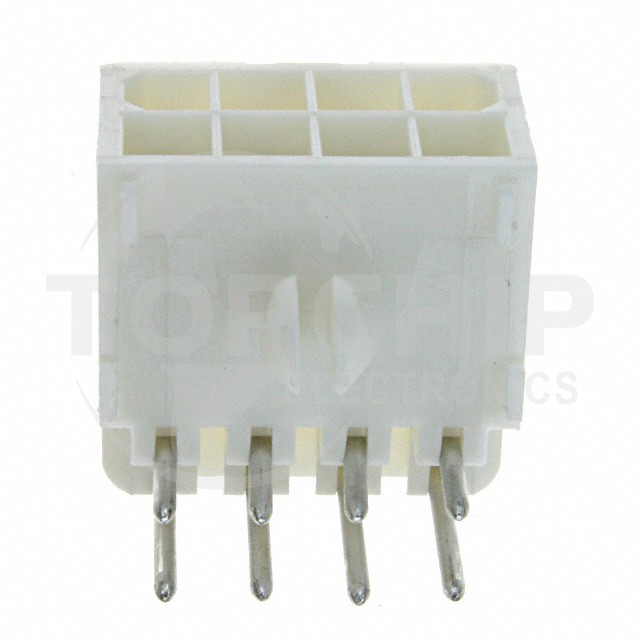

1-770970-0 Specifications

• Series:Mini-Universal MATE-N-LOK
• Package:Bulk
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.163" (4.14mm)
• Number of Positions:8
• Number of Rows:2
• Row Spacing - Mating:0.163" (4.14mm)
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole, Right Angle
• Termination:Solder
• Fastening Type:Locking Ramp
• Contact Length - Mating:-
• Contact Length - Post:0.145" (3.68mm)
• Overall Contact Length:-
• Insulation Height:0.386" (9.80mm)
• Contact Shape:Circular
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:150.0µin (3.81µm)
• Contact Finish - Post:Tin
• Contact Material:Brass
• Insulation Material:Polyamide (PA), Nylon
• Features:Board Lock
• Operating Temperature:-20°C ~ 85°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:White
• Current Rating (Amps):Varies by Wire Gauge
• Voltage Rating:600VAC
