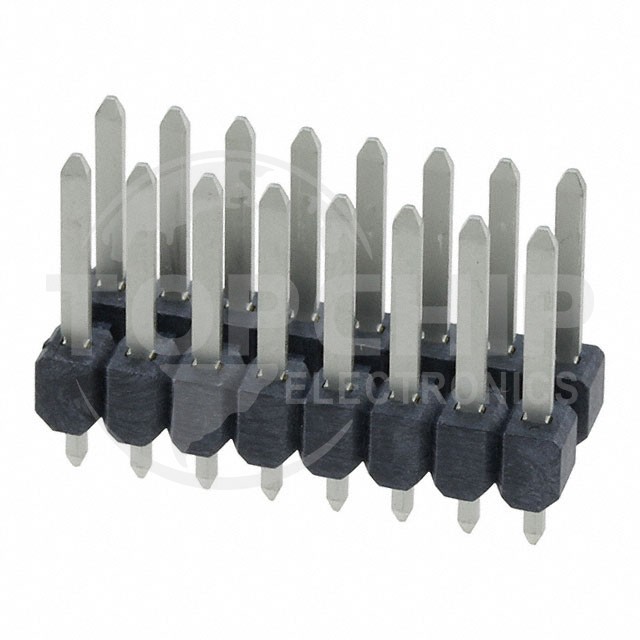

0757571481 Specifications

• Series:MX150 75757
• Package:Tube
• Part Status:Active
• Connector Type:Header, Breakaway
• Contact Type:Male Blade
• Pitch - Mating:0.138" (3.50mm)
• Number of Positions:16
• Number of Rows:2
• Row Spacing - Mating:0.236" (6.00mm)
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Unshrouded
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.441" (11.20mm)
• Contact Length - Post:0.120" (3.05mm)
• Overall Contact Length:0.738" (18.75mm)
• Insulation Height:0.177" (4.50mm)
• Contact Shape:Square
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:59.0µin (1.50µm)
• Contact Finish - Post:Tin
• Contact Material:Cartridge Brass
• Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
• Features:-
• Operating Temperature:-
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):-
• Voltage Rating:-
