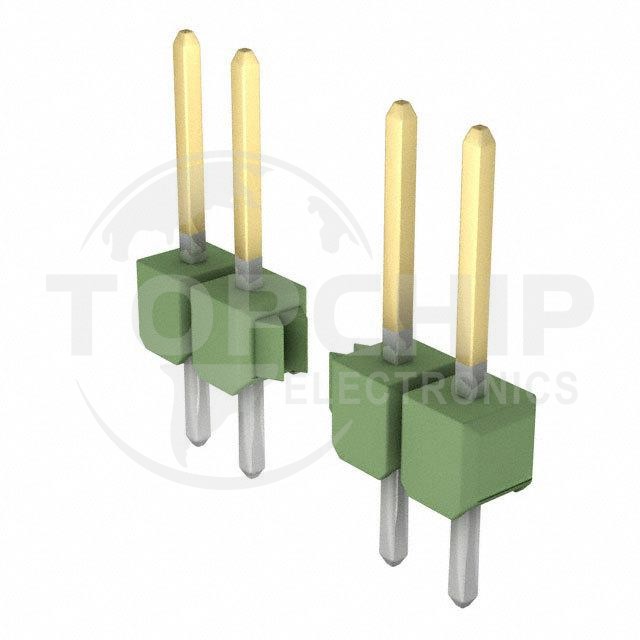

1-826629-0 Specifications

• Series:AMPMODU Mod II
• Package:Bulk
• Part Status:Active
• Connector Type:Header, Breakaway
• Contact Type:Male Pin
• Pitch - Mating:0.100" (2.54mm)
• Number of Positions:10
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Board or Cable
• Shrouding:Unshrouded
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.264" (6.70mm)
• Contact Length - Post:0.126" (3.20mm)
• Overall Contact Length:0.500" (12.70mm)
• Insulation Height:0.110" (2.79mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:3.90µin (0.099µm)
• Contact Finish - Post:Tin
• Contact Material:Brass
• Insulation Material:Polybutylene Terephthalate (PBT)
• Features:-
• Operating Temperature:-65°C ~ 105°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Green
• Current Rating (Amps):5A
• Voltage Rating:-
