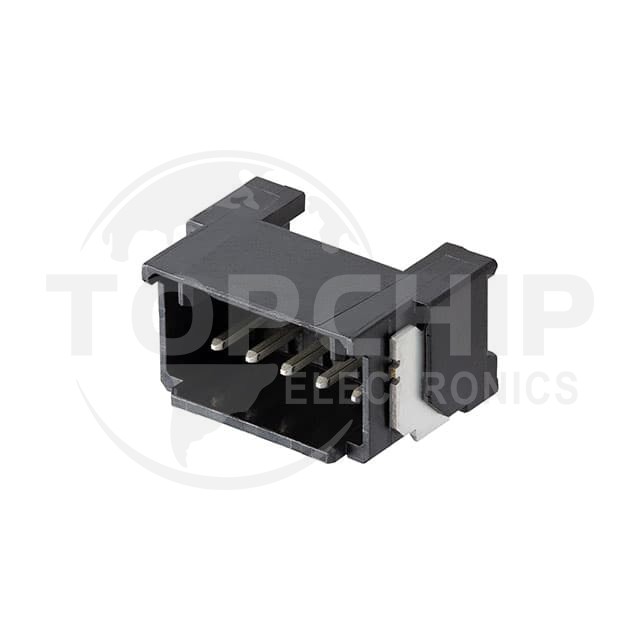

2059720021 Specifications

• Series:Micro-One 205972
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.079" (2.00mm)
• Number of Positions:2
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Surface Mount, Right Angle
• Termination:Solder
• Fastening Type:Latch Lock
• Contact Length - Mating:-
• Contact Length - Post:-
• Overall Contact Length:-
• Insulation Height:0.283" (7.19mm)
• Contact Shape:Square
• Contact Finish - Mating:Tin-Bismuth
• Contact Finish Thickness - Mating:39.4µin (1.00µm)
• Contact Finish - Post:Tin-Bismuth
• Contact Material:Brass
• Insulation Material:Polyamide (PA), Nylon
• Features:Solder Retention
• Operating Temperature:-40°C ~ 105°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):4A per Contact
• Voltage Rating:250VAC/DC
