0022289033

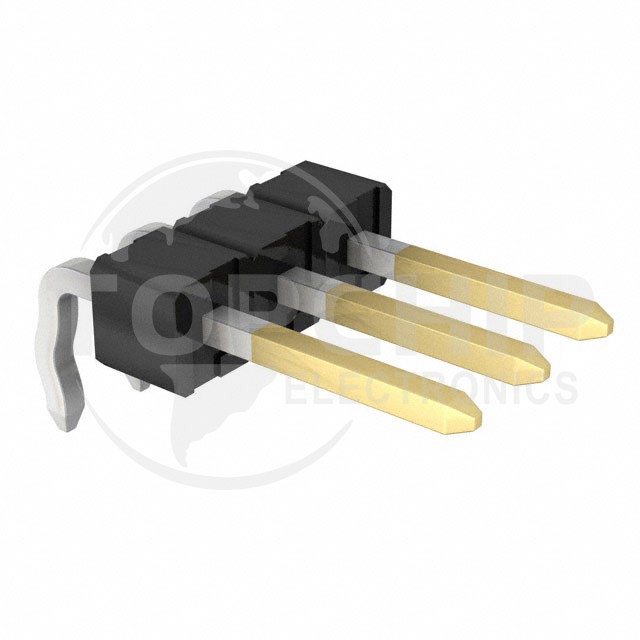

Image is for reference, please contact us to get the real picture

Manufacturer Part
0022289033
Manufacturer
Woodhead - Molex
Description
CONN HEADER R/A 3POS 2.54MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
29308
Datasheets
-

0022289033 Specifications

  • Series:KK254, 42377
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:3
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Kinked Pin, Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.324" (8.23mm)
  • Contact Length - Post:0.135" (3.43mm)
  • Overall Contact Length:-
  • Insulation Height:0.098" (2.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:-
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-
