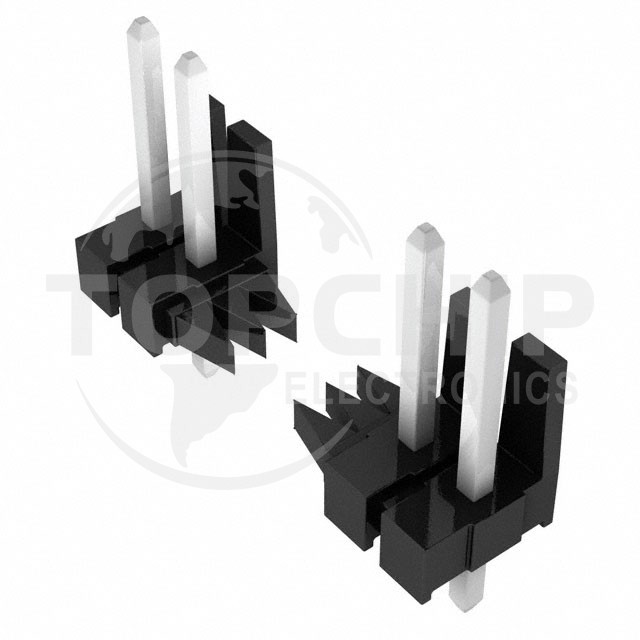

0026481123 Specifications

• Series:KK396, 41681
• Package:Bulk
• Part Status:Active
• Connector Type:Header, Breakaway
• Contact Type:Male Pin
• Pitch - Mating:0.156" (3.96mm)
• Number of Positions:12
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Board or Cable
• Shrouding:Shrouded - 1 Wall
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.450" (11.43mm)
• Contact Length - Post:0.172" (4.37mm)
• Overall Contact Length:0.750" (19.05mm)
• Insulation Height:0.360" (9.14mm)
• Contact Shape:Square
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:60.0µin (1.52µm)
• Contact Finish - Post:Tin
• Contact Material:Brass
• Insulation Material:Polyester, Glass Filled
• Features:-
• Operating Temperature:-
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):-
• Voltage Rating:-
