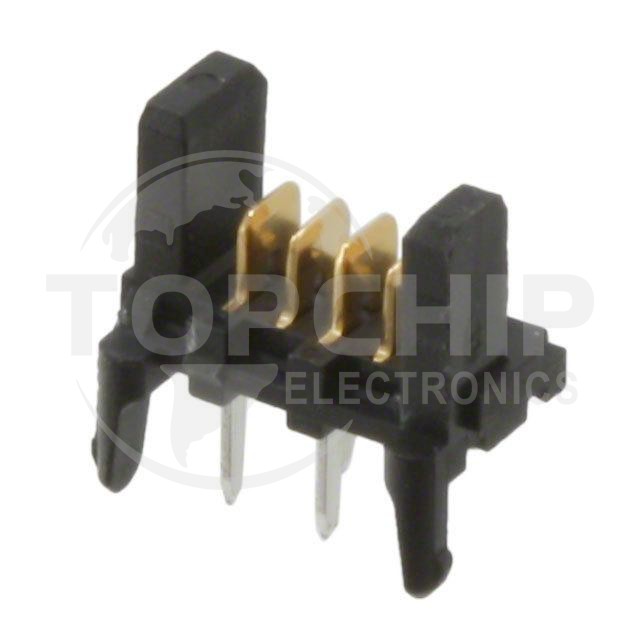

0903257004 Specifications

• Series:Picoflex PF-50 90325
• Package:Tube
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Blade
• Pitch - Mating:0.050" (1.27mm)
• Number of Positions:4
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 2 Wall
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:-
• Contact Length - Post:0.130" (3.30mm)
• Overall Contact Length:-
• Insulation Height:0.252" (6.40mm)
• Contact Shape:Rectangular
• Contact Finish - Mating:Palladium-Nickel
• Contact Finish Thickness - Mating:24.0µin (0.61µm)
• Contact Finish - Post:-
• Contact Material:Brass
• Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
• Features:Board Lock
• Operating Temperature:-40°C ~ 105°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):1.2A
• Voltage Rating:250V
