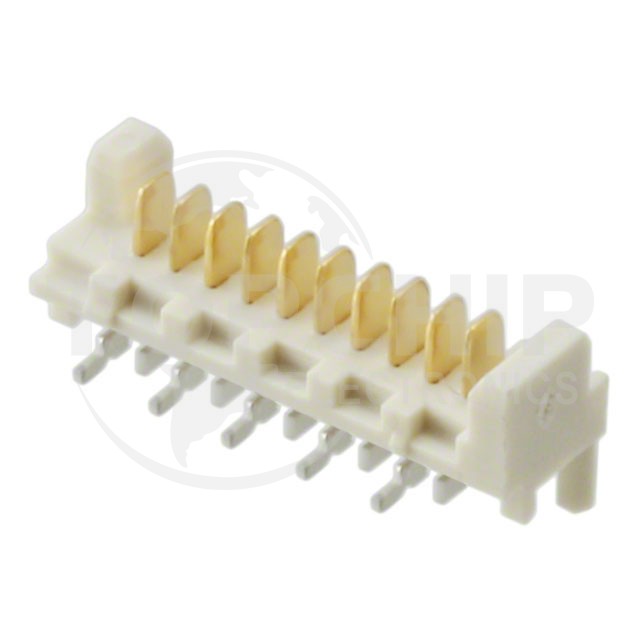

0908143910 Specifications

• Series:Picoflex PF-50 90814
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Blade
• Pitch - Mating:0.050" (1.27mm)
• Number of Positions:10
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 2 Wall
• Mounting Type:Surface Mount
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.085" (2.15mm)
• Contact Length - Post:-
• Overall Contact Length:-
• Insulation Height:0.161" (4.10mm)
• Contact Shape:Rectangular
• Contact Finish - Mating:Palladium-Nickel
• Contact Finish Thickness - Mating:24.0µin (0.61µm)
• Contact Finish - Post:Tin
• Contact Material:Cartridge Brass
• Insulation Material:Polyamide (PA), Nylon, Glass Filled
• Features:Board Guide
• Operating Temperature:-
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Natural
• Current Rating (Amps):1.2A
• Voltage Rating:250V
