95278-102A20LF

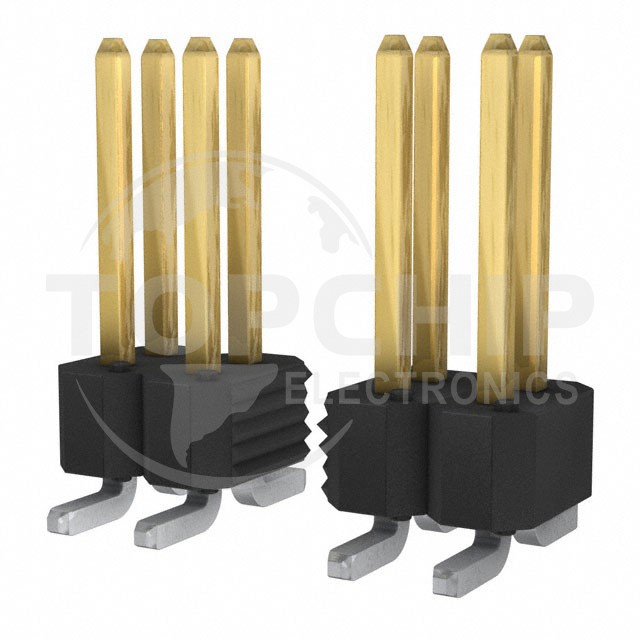

Image is for reference, please contact us to get the real picture

Manufacturer Part
95278-102A20LF
Manufacturer
Storage & Server IO (Amphenol ICC)
Description
CONN HEADER SMD 20POS 2.54MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
558
Datasheets
-

95278-102A20LF Specifications

  • Series:BERGSTIK®
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:20
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.315" (8.00mm)
  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic
  • Features:Pick and Place
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-
