3-794679-4

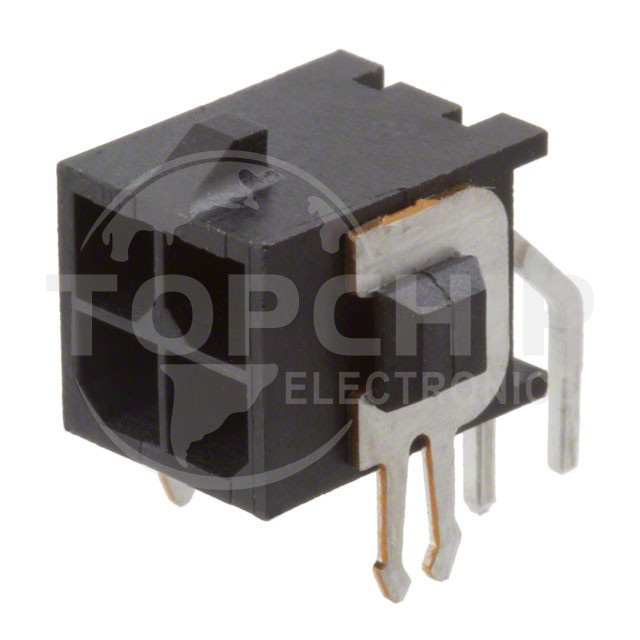

Image is for reference, please contact us to get the real picture

Manufacturer Part
3-794679-4
Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER R/A 4POS 3MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
3944
Datasheets
-

3-794679-4 Specifications

  • Series:Micro MATE-N-LOK
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.118" (3.00mm)
  • Number of Positions:4
  • Number of Rows:2
  • Row Spacing - Mating:0.118" (3.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-
  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.290" (7.37mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Board Lock
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:250V
