2077601281

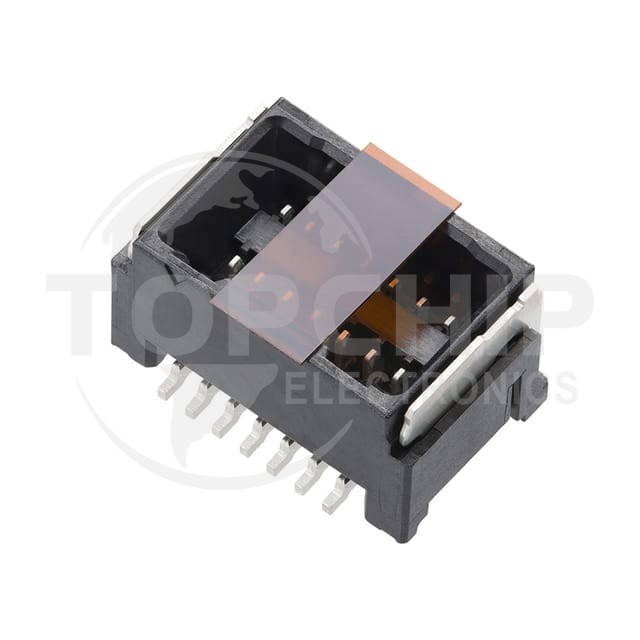

Image is for reference, please contact us to get the real picture

Manufacturer Part
2077601281
Manufacturer
Woodhead - Molex
Description
1.25MM MICRO-LOCK PLUS PCB HDR V
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
500
Datasheets
-

2077601281 Specifications

  • Series:Micro-Lock PLUS 207760
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.049" (1.25mm)
  • Number of Positions:12
  • Number of Rows:2
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-
  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.285" (7.25mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Tin-Bismuth
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin-Bismuth
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Pick and Place, Solder Retention
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:50VAC/DC
