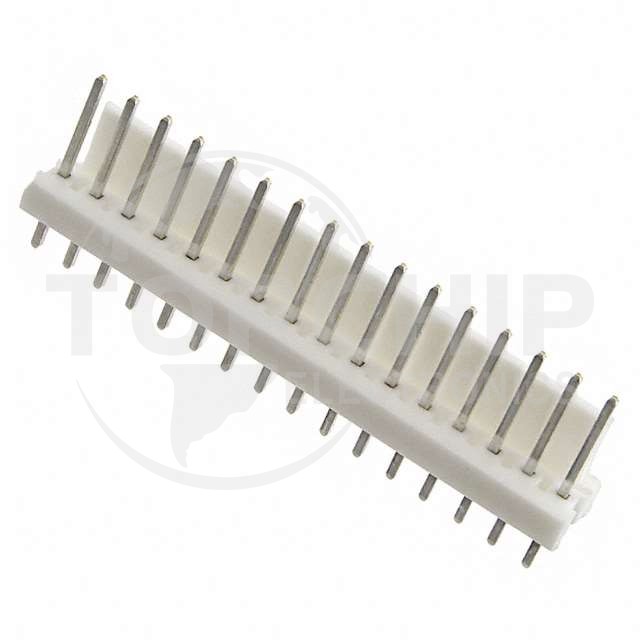

1-640454-6 Specifications

• Series:MTA-100
• Package:Bulk
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.100" (2.54mm)
• Number of Positions:16
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 1 Wall
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:-
• Contact Length - Mating:0.295" (7.49mm)
• Contact Length - Post:0.140" (3.56mm)
• Overall Contact Length:0.535" (13.59mm)
• Insulation Height:0.305" (7.75mm)
• Contact Shape:Square
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:-
• Contact Finish - Post:Tin
• Contact Material:Copper Alloy
• Insulation Material:Thermoplastic
• Features:-
• Operating Temperature:-55°C ~ 105°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Natural
• Current Rating (Amps):Varies by Wire Gauge
• Voltage Rating:250VAC
