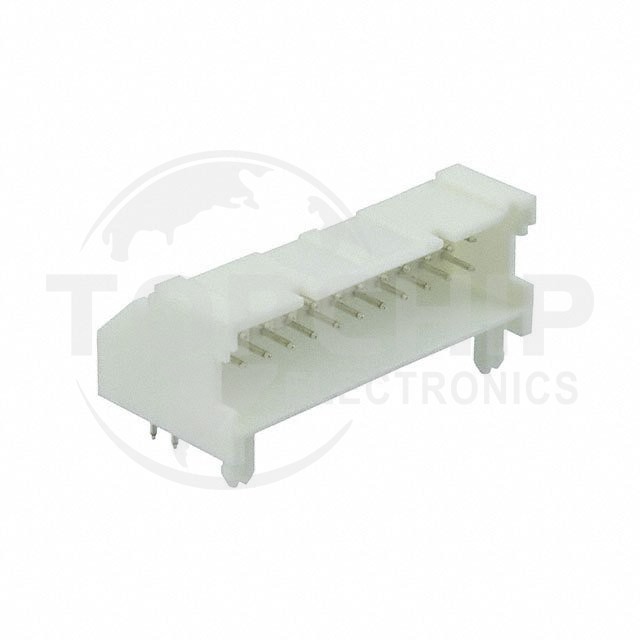

2-1969572-4 Specifications

• Series:Economy Power 2.5
• Package:Bulk
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.098" (2.50mm)
• Number of Positions:24
• Number of Rows:2
• Row Spacing - Mating:0.098" (2.50mm)
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole, Right Angle
• Termination:Solder
• Fastening Type:Friction Lock
• Contact Length - Mating:-
• Contact Length - Post:0.134" (3.40mm)
• Overall Contact Length:-
• Insulation Height:0.479" (12.17mm)
• Contact Shape:Circular
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:-
• Contact Finish - Post:Tin
• Contact Material:Brass
• Insulation Material:Polyamide (PA66), Nylon 6/6
• Features:Board Lock, Glow Wire Compliant
• Operating Temperature:-55°C ~ 105°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Natural
• Current Rating (Amps):4.2A
• Voltage Rating:250VAC
