0347920080

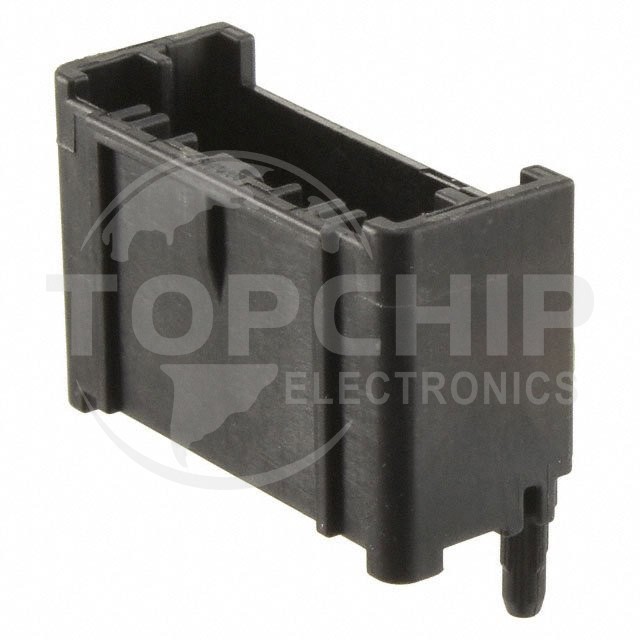

Image is for reference, please contact us to get the real picture

Manufacturer Part
0347920080
Manufacturer
Woodhead - Molex
Description
CONN HEADER VERT 8POS 2MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
1098
Datasheets
-

0347920080 Specifications

  • Series:Mini50 34792
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Blade
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:8
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Lock
  • Contact Length - Mating:0.218" (5.55mm)
  • Contact Length - Post:0.051" (1.30mm)
  • Overall Contact Length:-
  • Insulation Height:0.575" (14.60mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Syndiotactic Polystyrene (SPS), Glass Filled
  • Features:Board Guide
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-
