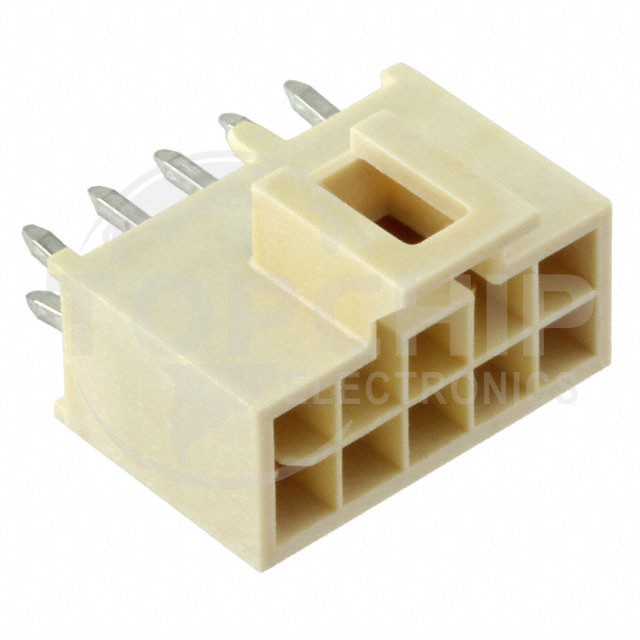

1053102110 Specifications

• Series:Nano-Fit 105310
• Package:Tray
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.098" (2.50mm)
• Number of Positions:10
• Number of Rows:2
• Row Spacing - Mating:0.098" (2.50mm)
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole
• Termination:Kinked Pin, Solder
• Fastening Type:Latch Holder
• Contact Length - Mating:-
• Contact Length - Post:0.126" (3.20mm)
• Overall Contact Length:-
• Insulation Height:0.356" (9.05mm)
• Contact Shape:Square
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:59.0µin (1.50µm)
• Contact Finish - Post:Tin
• Contact Material:Brass
• Insulation Material:Liquid Crystal Polymer (LCP)
• Features:Board Guide
• Operating Temperature:-40°C ~ 105°C
• Ingress Protection:-
• Material Flammability Rating:-
• Insulation Color:Natural
• Current Rating (Amps):-
• Voltage Rating:250V
