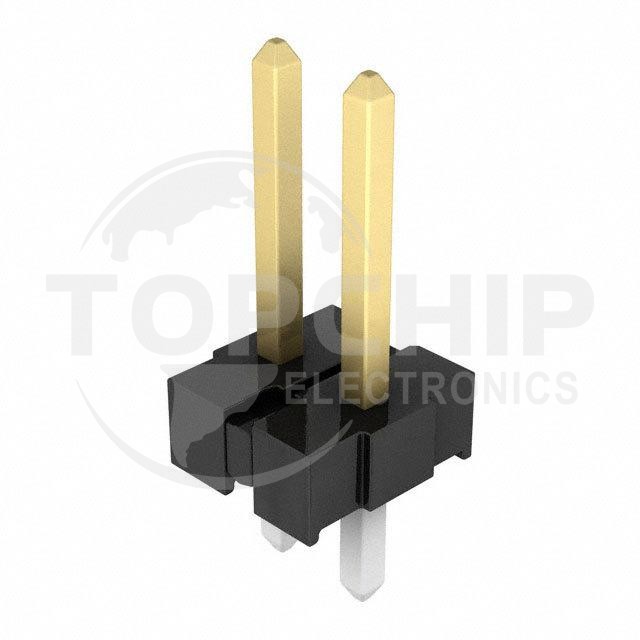

0026482020 Specifications

• Series:KK396, 41661
• Package:Bulk
• Part Status:Active
• Connector Type:Header, Breakaway
• Contact Type:Male Pin
• Pitch - Mating:0.156" (3.96mm)
• Number of Positions:2
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Board or Cable
• Shrouding:Unshrouded
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.590" (14.99mm)
• Contact Length - Post:0.172" (4.37mm)
• Overall Contact Length:0.890" (22.61mm)
• Insulation Height:0.128" (3.25mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:20.0µin (0.51µm)
• Contact Finish - Post:Tin
• Contact Material:Brass
• Insulation Material:Polyester, Glass Filled
• Features:-
• Operating Temperature:-
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):-
• Voltage Rating:-
