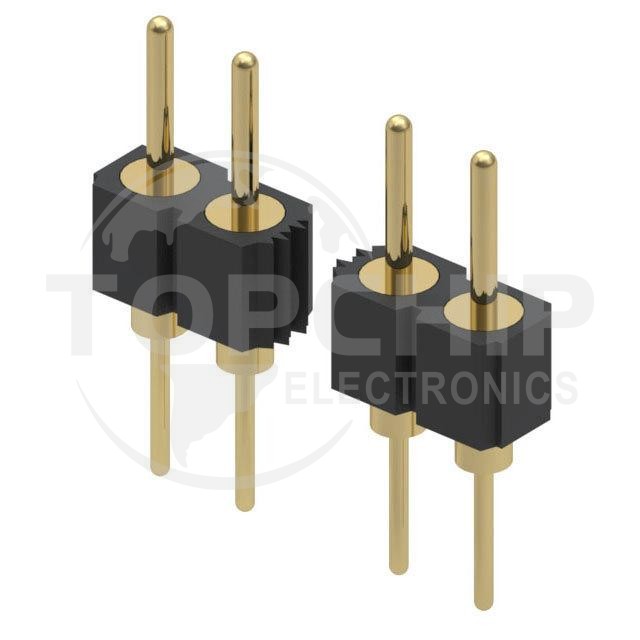

350-10-140-00-001000 Specifications

• Series:350
• Package:Tube
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.100" (2.54mm)
• Number of Positions:40
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Board
• Shrouding:Unshrouded
• Mounting Type:Through Hole
• Termination:Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.166" (4.22mm)
• Contact Length - Post:0.157" (4.00mm)
• Overall Contact Length:0.477" (12.12mm)
• Insulation Height:0.110" (2.79mm)
• Contact Shape:Circular
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:10.0µin (0.25µm)
• Contact Finish - Post:Gold
• Contact Material:Brass Alloy
• Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
• Features:-
• Operating Temperature:-
• Ingress Protection:-
• Material Flammability Rating:-
• Insulation Color:Black
• Current Rating (Amps):-
• Voltage Rating:-
