800-10-014-61-001000

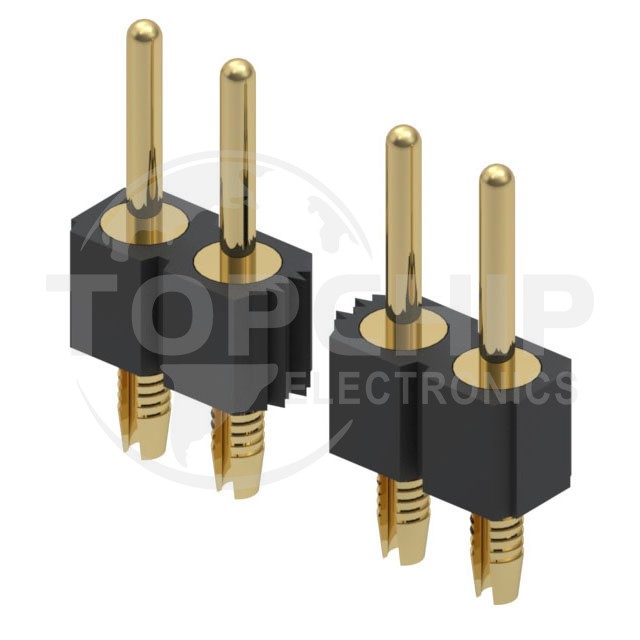

Image is for reference, please contact us to get the real picture

Manufacturer Part
800-10-014-61-001000
Manufacturer
Mill-Max
Description
CONN HEADER VERT 14POS 2.54MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
88
Datasheets
-

800-10-014-61-001000 Specifications

  • Series:800
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:14
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Press-Fit, Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.191" (4.85mm)
  • Contact Length - Post:0.104" (2.64mm)
  • Overall Contact Length:0.405" (10.29mm)
  • Insulation Height:0.110" (2.79mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Brass Alloy
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-
